LED FlexStrip
LED Flexstrip is designed to help professional lighting designers to create stunning effects. This long, flexible, cuttable LED Flexstrip has a luminous flux up to 1200lm/m and efficacy up to 150lm/W.
T-8IGHT PRO is using a high-quality LED Chip solution with the great performance of LM-80 lumen maintenance which is proved that the LEDs enhanced the color consistency, quality of color, and reliability in the product.
Product
● Flexible and cuttable LED Flexstrip
● Luminous flux : up to 1200lm/m
● Efficacy up to 155lm/W
● Flicker-Free, Low blue light
● Offers 3 CCT - 3,000K, 4,000K and 6,500K
● 2-packages :
5M and 10M
● Long lifespan of 50,000hrs
● Comply to CE safety standard
Flickering has always plagued our life. Some people report that flickering causes them headaches, eye fatigue and discomfort. Now using new technology, the flickering problem can be solved.
In addition to flickering, the product is also dealt with relative technology to minimize the blue light hazards. According to the standard of IEC/TR 62778:2014, the product test result is RG0 (exempt group), which proves that there is no risk of photobiological hazard.
In order to compare the long-term performance of LEDs, the industry has formulated a set of standards, called “IES LM-80-08", which specifies how LED manufacturers can test LED performance for at least 6,000 hours.
For many applications, it is required to evaluate when the light drops to 70%. Therefore, the LED industry has also adopted IES TM-21-11, to predict the average lumen maintenance of actual test.
CE certification must comply with CE directives and CE regulations, indicating that the product complies with strict safety
directives, and mainly tests for electromagnetic compatibility directives and low-voltage directives.
The GS Mark (Geprüfte Sicherheit, meaning Safety Tested) is a licensed mark of the German government and may only be issued by an accredited product safety testing and certification agency.
Specification
Cap
Nominal Input Voltage
Frequency
Rated Current
PFC
Power Consumption
LED Technology
Lumens Output
CCT
CRI
Operating Temperature
Operating Humidity
IP Rating
Lifespan

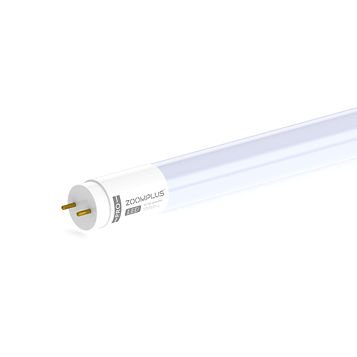

T-8IGHT PRO
4FT (1200mm)
G13
220 - 240Vac
50/60Hz
82mA (max.)
>0.9
18Watts
SMD
2,800lm
3000K, 4000K, 6500K
80
-20℃...+40℃
5...85%
IP20
50,000hrs
T-8IGHT
5FT (1500mm)
110mA (max.)
24Watts
3,700lm
T-8IGHT PRO
2FT (600mm)
42mA (max.)
9Watts
1,400lm
Documents
Specification
Operating manual
Installation manual
Certification
Standard list
Brouchures
Calculation Tool
Case Study
SME as an example
For replacing 100 high-efficiency LED tubes for 12 hours a day, 6 days a week.
The payback time only takes 60 days* , and it can save HK$23,783 of electricity bills in 2 years. Thanks to the high-efficiency LED technology, the efficacy is improved, the payback period is shortened, and the return on investment is faster than before.
* The 60-days payback time is based on 12 hours a day and 6 days a week.
The calculation includes the subsidy amount from subsidy program
